microDDP 1GbE

microDDP series

1U server with up to 8 SSDs or HDDs

Available bandwidth
Up to 700 MB/s

Capacity
Up to 32 TB

Network Options
7x 1GbE Ports


microDDP 10GbE

microDDP series

1U server with up to 8 SSDs or HDDs

Available bandwidth
Up to 2.2 GB/s

Capacity
Up to 32 TB

Network Options
2x 1GbE Ports & 2x 10GbE Ports



DDP8D

Standalone/mirrorDDP series

2U server with up to 8 HDDs/SSDs

Bandwidth range*
From 800 MB/s to 2.2 GB/s

Base Capacity
Up to 80 TB

Expanded Capacity
Using EX RAID cards and EXR Chassis

Network Options
1GbE cards, 10GbE cards, 40GbE cards



DDP16D

Standalone/mirrorDDP series

3U server with up to 16 HDDs/SSDs

Bandwidth range*
From 1.6 GB/s to 5.4 GB/s

Base Capacity
Up to 160 TB

Expanded Capacity
Using EX RAID cards and EXR Chassis

Network Options
1GbE cards, 10GbE cards, 40GbE cards

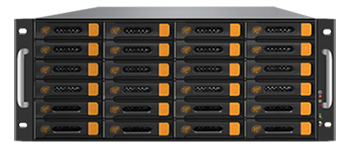

DDP24D

Standalone/mirrorDDP series

4U server with up to 24 HDDs/SSDs

Bandwidth range*
From 2.4 GB/s to 6.6 GB/s

Base Capacity
Up to 240 TB

Expanded Capacity
Using EX RAID cards and EXR Chassis

Network Options
1GbE cards, 10GbE cards, 40GbE cards



DDP48D

Standalone/mirrorDDP series

8U server with up to 48 HDDs/SSDs

Bandwidth range*
From 4.8 GB/s to 13.2 GB/s

Base Capacity
Up to 480 TB

Expanded Capacity
Using EX RAID cards and EXR Chassis

Network Options
1GbE cards, 10GbE cards, 40GbE cards


MINIDDP24D

miniDDP series

2U server with up to 24 HDDs/SSDs

Bandwidth range*
From 2.4 GB/s to 6.6 GB/s

Base Capacity
Up to 96 TB

Expanded Capacity
Using EX RAID cards and EXR Chassis

Network Options
1GbE cards, 10GbE cards, 40GbE cards

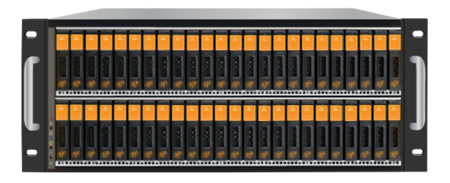

MINIDDP48D

miniDDP series

4U server with up to 48 HDDs/SSDs

Bandwidth range*
From 4.8 GB/s to 13.2 GB/s

Base Capacity
Up to 192 TB

Expanded Capacity
Using EX RAID cards and EXR Chassis

Network Options
1GbE cards, 10GbE cards, 40GbE cards


DDP HEAD

Redundant DDP series

3U server with OS on DOMs (Disk On Module)

Weight
32 Kg - 70 Lbs

Dimensions (D x W x H)
700 x 480 x 130 mm
28 x 19 x 5 inches

Package Dimensions (D x W x H)
940 x 610 x 430 mm
37 x 24 x 17 inches

Maximum power consumption
800 W 1+1 hot-swap redundant

Network Options
1GbE cards, 10GbE cards, 40GbE cards


DDP16EXR

Redundant/scalable DDP series

3U JBOD with up to 16 HDDs/SSDs

Bandwidth range*
From 1.6 GB/s to 5.4 GB/s

Chassis Capacity
Up to 160 TB

Maximum Capacity per EX RAID Card
6x Chassis up to 960 TB


DDP24EXR

Redundant/scalable DDP series

4U JBOD with up to 24 HDDs/SSDs

Bandwidth range*
From 2.4 GB/s to 6.6 GB/s

Chassis Capacity
Up to 240 TB expandable

Maximum Capacity per EX RAID Card
6x Chassis up to 1.4 PB


DDP60EXR

Redundant/scalable DDP series

4U JBOD with up to 60 HDDs/SSDs

Bandwidth range*
From 5.6 GB/s to 15.4 GB/s

Chassis Capacity
Up to 600 TB expandable

Maximum Capacity per EX RAID Card
6x Chassis up to 3.6 PB


*Raw bandwidth is calculated based on HDD or SSD packs. See DDP configurator for more options.
